FC Series Out-front Mowers

Model Comparison Product Features Attachments Specifications

The Kubota FC Series range delivers a powerful combination of agility, versatility and smart engineering across three purpose‑built models designed for efficient cut‑and‑collect mowing. Each machine is driven by Kubota’s reliable diesel engines, smooth hydrostatic transmissions and a diverse choice of decks to suit varied cutting requirements. With hydraulically operated high‑dump collectors across the lineup, the FC Series handles everything from tight urban spaces to wide parklands with ease. Operator comfort and usability are front and centre, with ergonomic controls, spacious platforms and intuitive operation built into every model. Whether you’re navigating confined areas or covering big open grounds, the FC Series delivers strong traction, low‑maintenance engineering and all‑day comfort to tackle demanding mowing environments with confidence.

Model Comparison

22 hp
22 hp
26 hp

Product Features

Powerful, efficient Kubota diesel engines with E‑TVCS

FC Series mowers are powered by reliable Kubota 3‑cylinder liquid‑cooled diesel engines featuring E‑TVCS (Three‑Vortex Combustion System) technology, which improves combustion efficiency for lower fuel use, reduced noise, stronger power delivery and smooth engine start‑up. The result is a dependable engine platform built to support long hours of cut‑and‑collect work.

Powerful, efficient Kubota diesel engines with E‑TVCS

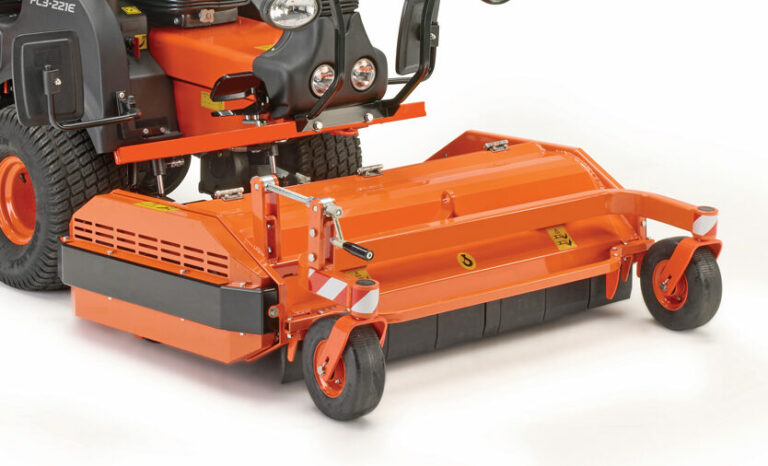

Mower Deck

RC44C-FC2

Mower Deck

Deck RC44C-FC3

Mower Deck

RCF43RD-FC3

Mower Deck

RC50C-FC3

Specifications

Highlight differences

Engine

Name	FC2-221	FC3-221E	FC3-261
Engine Type	Liquid-cooled	Liquid-cooled	Liquid-cooled
Fuel Type	Diesel	Diesel	Diesel
Cylinders	3	3	3
Engine Model	Kubota D902	Kubota D902	Kubota D1105
Engine Gross	22 hp	22 hp	26 hp
Displacement	898 cc	898 cc	1,123 cc
Fuel Tank Capacity	16 l	30 l	30 l
Rated Speed	3,200 rpm	3,200 rpm	3,000 rpm

Drive Train

Name	FC2-221	FC3-221E	FC3-261
Transmission	HST	HST	HST
Drive Method	4WD	2WD	4WD
Brakes	Hydrostatic service brake; drum parking brake	Hydrostatic service brake; disc parking brake	Hydrostatic service brake; disc parking brake
PTO	Hydraulic drive to mower deck	Shaft drive to mower deck	Shaft drive to mower deck

Tyre Size

Name	FC2-221	FC3-221E	FC3-261
Front	18x8.5-8	20x10-8	23x10.5-12
Rear	15x6-6	15x6-6	16x7.5-8

Travelling Speeds

Name	FC2-221	FC3-221E	FC3-261
Max. Forward Speed	10.9 km/h	11 km/h	13.7 km/h
Max. Reverse Speed	5 km/h	6 km/h	10 km/h

Grass Catcher - Optional

Name	FC2-221	FC3-221E	FC3-261
Bag Type	Hopper with direct channeling chute	N/A	N/A
Bag Capacity	480 l	N/A	N/A
Chute - Diameter	258 x 196 (rectangle) mm	N/A	N/A
Dump Height	1,650 mm	N/A	N/A

Dimensions

Name	FC2-221	FC3-221E	FC3-261
Length	2,225 mm	2,295 mm	2,235 mm
Width	1,000 mm	1,105 mm	1,125 mm
Height	2,000 mm	2,010 mm	2,050 mm
Wheelbase	1,100 mm	1,260 mm	1,260 mm
Ground Clearance	95 mm	120 mm	125 mm
Tread Front	770 mm	850 mm	850 mm
Tread Rear	765 mm	900 mm	900 mm
Turning Radius	595 mm	685 mm	600 mm
Weight	657 kg	823 kg	1,000 kg
