SVL65-2s

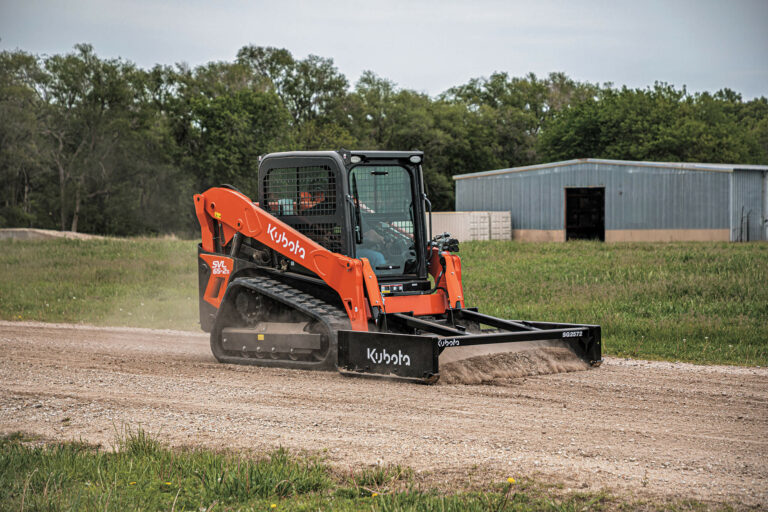

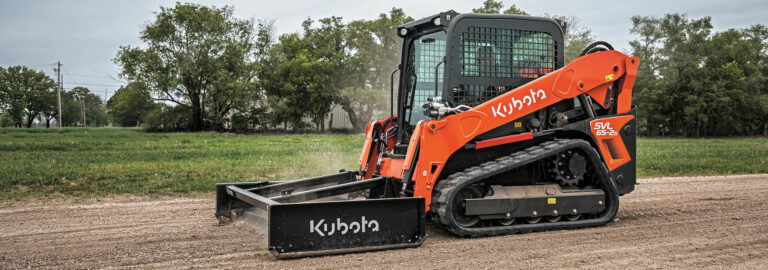

Track Loader SVL65-2s

Product Features Specifications Implements

Building on the proven performance and reliability of the SVL65‑2, the upgraded SVL65‑2s delivers enhanced technologies, improved operator comfort and refined efficiency to meet the demands of modern worksites. Retaining the compact versatility and durability that made the SVL65‑2 a trusted machine, the SVL65‑2s introduces thoughtful upgrades across power delivery, control responsiveness and operator-focused features. Designed for increased productivity and ease of operation, the SVL65‑2s sets a new benchmark in its class while maintaining the rugged dependability operators expect from the SVL series. Both the standard and high-flow models continue to maintain compatibility with our broad range of our SSV and SVL performance‑matched attachment options.

Product Features

Vertical Lift

This feature elevates the bucket to an impressive height of 3010 mm at the hinge pin, all while maintaining the SVL65-2s notably extended reach of 886 mm. The Standard Self-leveling Function ensures that the bucket or fork remains level without requiring manual angle adjustments during lifting. This function can be easily activated or deactivated with a simple switch click.

Vertical Lift

Specifications

Download Brochure

Engine

Name	SVL65-2s
Engine Type	Tier 4 Emission Level
Fuel Type	Diesel
Cylinders	4
Engine Model	Kubota V2607-CR-TE4
Engine Net	59.9 HP
Engine Gross	68.4 HP
Displacement	2,615 cc
Rated speed	2,600 rpm

Undercarriage

Name	SVL65-2s
Track Width - Standard	320 mm
Track Width - Wide	380 mm
Ground pressure Cab - Standard Track	5 psi
Ground pressure Cab - Wide Track	4.4 psi
Track roller (per side)	4
Track Ground Contact Length	1,470 mm
Traction Force	3,813 kgf
Min. Ground Clearance	233 mm
